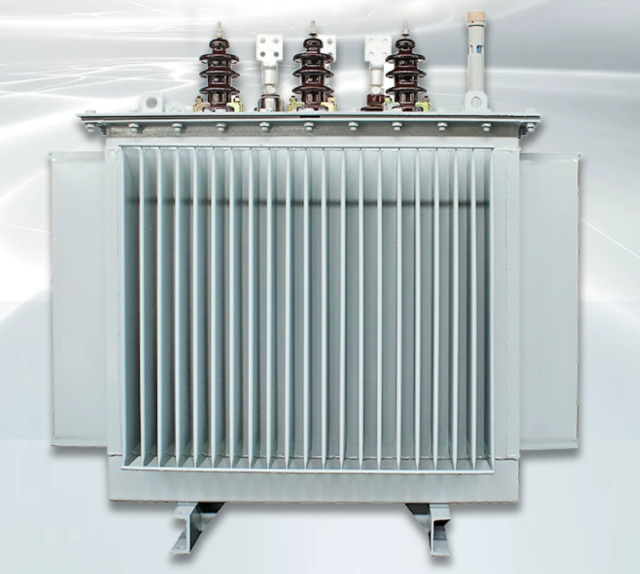

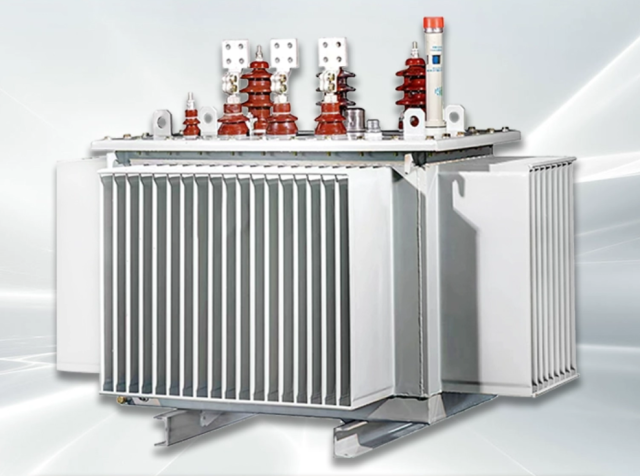

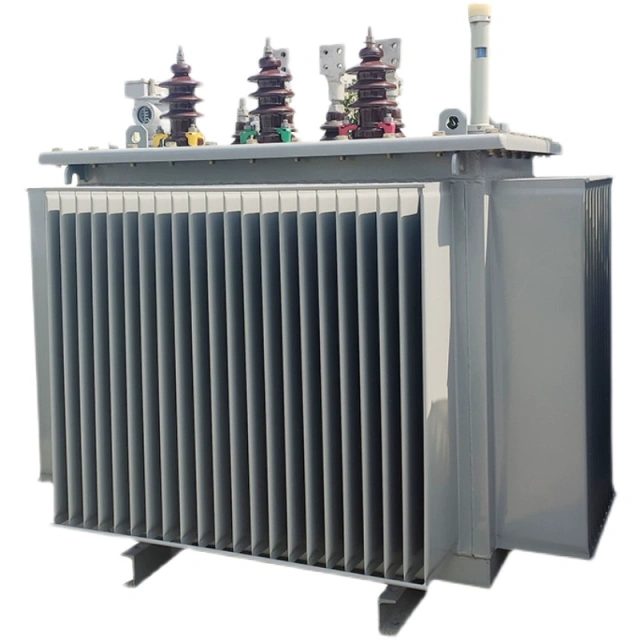

35KV power transformer, used to change a certain value of AC voltage (current) into another or several values of different voltage (current) equipment with the same frequency. It is the core equipment of 35KV substation, which changes the low voltage power supply to high voltage through the transformer to meet the power needs of large users. Advantages of transformer:
Strong short-circuit resistance. Because the high and low winding reactance height is the same, there is no spiral Angle phenomenon, and the ampere-turns balance between the coils.
High quality metal material. Made of high quality cold rolled silicon steel sheet, low consumption, low noise and reliable.
Insulated body. Vacuum dipping process, good insulation; The body of the whole machine is painted with high-quality paint, and the shell is equipped with high overload capacity of heat sink.
